Rapid freezer H series
KOMA
H series
Rapid freezer
KOMA's patented "80/20 system" does not lose food freshness and quality for a long time. In order to maintain the flavor and freshness of food, it is very important to apply quick freezing in a fresh state.
H-1
-38℃/-18℃
- Size
- width1190×depth1125×height2100mm
- Power supply
- 3phase 200V 50Hz / 2.4kW~4.0kW
60Hz / 2.4kW~3.1kW - compressor
- 50Hz / 2HP.3HP.4HP
60Hz / 2HP.3HP - capacity
- 474L
- accessories
- KOMAtray14Sheet
holder 14bottles
H-3
-38℃/-18℃
- Size
- width2060×depth1125×height2100mm
- Power supply
- 3phase 200V 2.4kW
- compressor
- 2HP
- capacity
- 1,274L
- accessories
- KOMA trays 30Sheet
holder 30 bottles
Maximum number of trays90Sheet/P=50mm
H-4
-38℃/-18℃
- Size
- width2930×depth1125×height2100mm
- Power supply
- 3phase 200V. 3.1kW
- compressor
- 3HP
- capacity
- 2,074L
- accessories
- KOMAtray50Sheet
holder 50bottles
Maximum number of trays146Sheet/P=50mm

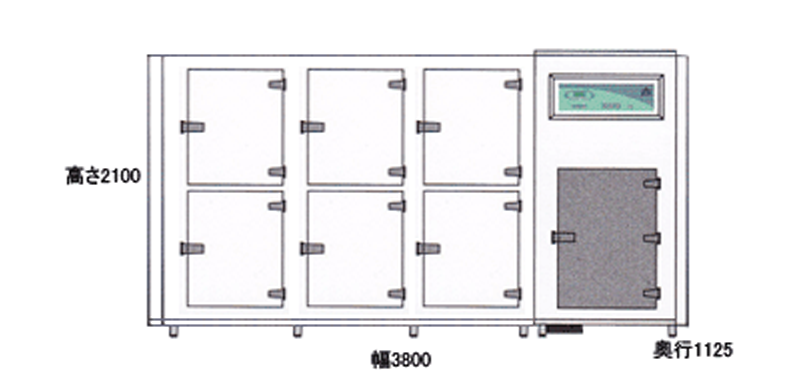

H-6
-38℃/-18℃
- Size
- width3800×depth1125×height2100mm
- Power supply
- 3phase 200V. 3.1kW
- compressor
- 3HP
- capacity
- 2,874L
- accessories
- KOMAtray 70Sheet
holder 70bottles
Maximum number of trays202Sheet/P=50mm

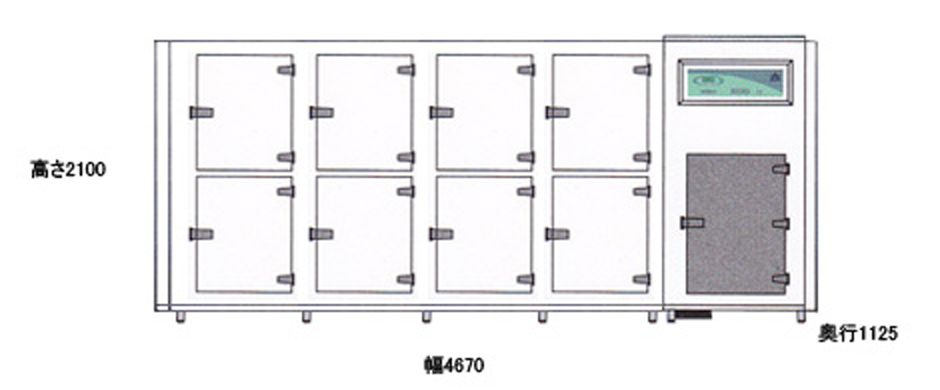

H-8
-38℃/-18℃
- Size
- width4670×depth1125×height2100mm
- Power supply
- 3phase 200V. 3.1kW
- compressor
- 3HP
- capacity
- 3,674L
- accessories
- KOMAtray90Sheet
holder 90bottles
Maximum number of trays258Sheet/P=50mm
H-10
-38℃/-18℃
- Size
- width5540×depth1125×height2100mm
- Power supply
- 3phase 200V 50Hz / 4.0kW
60Hz / 3.1kW - compressor
- 50Hz / 4HP
60Hz / 3HP - capacity
- 4,474L
- accessories
- KOMAtray110Sheet
holder 110bottles
Maximum number of trays316Sheet/P=50mm
